技術參數

◎規(guī)格：端鈕盒銅條，小A(7×9)、中A(9×11、10×12)、

  大A(11×13)

◎電流配置：三相四線1.5(6)A帶10個輔助端口

                      三相四線10(40)A帶10個輔助端口

                      三相四線20(100)A帶10個輔助端口

                      另有三相三線小電流端口可選配

◎說明：采用最新國網標準拆分式端鈕盒及塑料鉛封設計，外觀

    高端大氣，另有復費率表型可供選擇。

TECHNICAL PARAMETERS

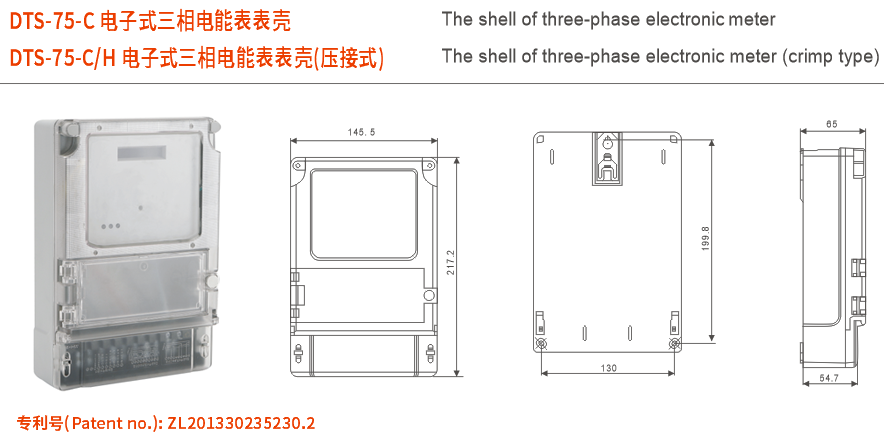

◎Specifications: copper bar of terminal box, small A(7×9), middle A

    (9×11, 10×12), large A(11×13)

◎Current configuration: three-phase four-wire 1.5(6)A with 10 auxiliary ports

                        three-phase four-wire 10(40)A with 10 auxiliary ports

                        three-phase tour-wire 20(100)A with 10 auxiliary ports

                        three-phase three-wire with low current port is optional

◎Note: it designed by the latest standard split terminal box and plastic

    seal of state grid, the appearance is high-end and beautiful, there

    is also multi-rate meter for choice.
