技術參數(shù)

◎規(guī)格：端鈕盒銅條，小A(7×9)、中A(10×12)、

   大A(11×13、13×15)

◎電流配置：三相四線1.5(6)A帶10個輔助端口

                      三相四線10(40)A帶10個輔助端口

                      三相四線20(100)A帶10個輔助端口

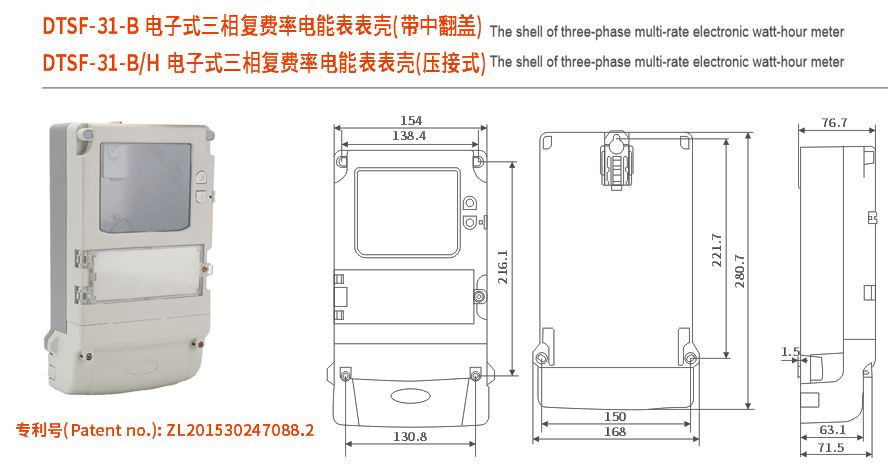

◎說明：三相862安裝尺寸，符合國家安裝標準。另有出口型大

    電流(100A以上)端鈕盒可配。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×9), middle A

    (10×12), large A(11×13,13×15)

◎Current configuration: three-phase four-wire 1.5(6)A with 10 auxiliary ports

                          three-phase four-wire 10(40)A with 10 auxiliary ports

                          three-phase tour-wire 20(100)A with 10 auxiliary ports

◎Note: three-phase 862 installation dimensions are in line with national

◎installation standards. There is also export-type high-current (above

   100A) terminal box for optional.
