技術參數

◎規格：端鈕盒銅條，小A(7×9)、中A(9×11、10×12)、

   大A(11×13)

◎電流配置：三相四線1.5（6）A帶10個輔助端口

                     三相四線10（40）A帶10個輔助端口

                     三相四線20（100）A帶10個輔助端口

                     另有三相三線小電流端口可選配

◎說明：采用最新國網標準拆分式端鈕盒及塑料鉛封設計，帶防

    竊蓋，外觀高端大氣，另有復費率表型可供選擇。

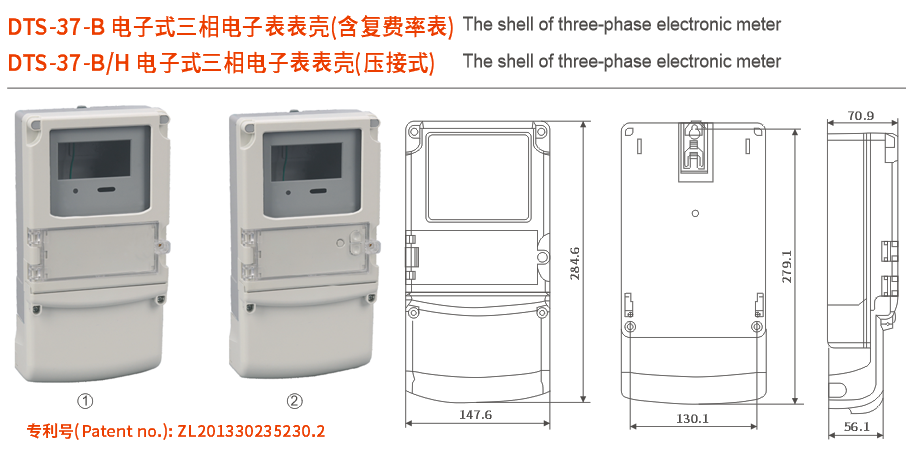

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×9), middle A

    (9×11,10×12), large A(11×13)

◎Current configuration: three-phase four-wire 1.5(6) A with 10 auxiliary ports

                          three-phase four-wire 10(40) A with 10 auxiliary ports

                          three-phase four-wire 20(100) A with 10 auxiliary ports

                          three-phase three-wire with low current port is optional

◎Note: it uses split terminal box and plastic seal design with the latest

    state grid standard with anti-theft cover, the appearance is high-

    end and beautiful, there is also multi-rate meter for choice.
