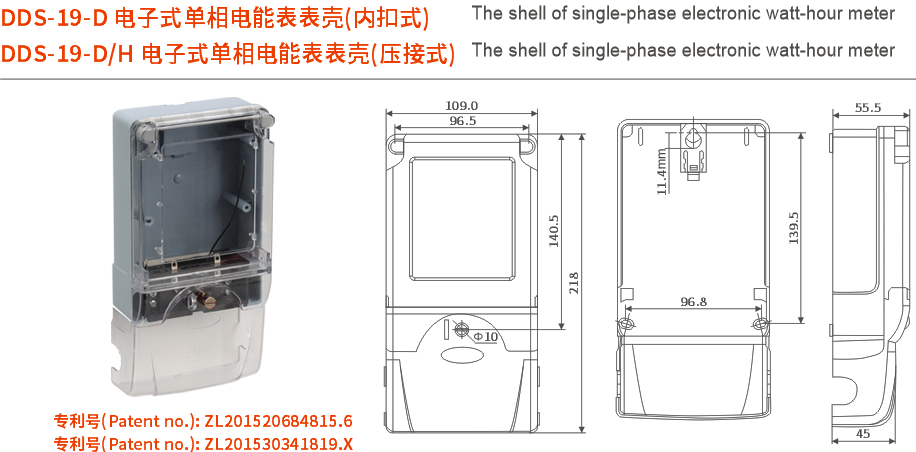

技術參數

◎規格：端鈕盒銅條，小A(7×9、8×10.5)、中A(9×11、10×12)

◎脈沖信號線：2、4、6、8線或2、4插片

◎電流配置：5（30）A帶1-8組輔助端口

                     10（60）A帶1-8組輔助端口

                     20（100）A帶1-8組輔助端口

◎說明：采用塑料鉛封，端子外置，采用內扣式設計，防竊電性

   能更強，可選配多種標牌、壓接式端鈕盒、拆分式端鈕盒。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×9, 8×10.5),

    middle A(9×11,10×12)

◎Pulse signal lines:2,4,6,8 lines or 2,4 plug-in pieces

◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports

                                       10(60)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note: it adopts plastic seal with, external terminal and internal buckle

    design. lt has stronger anti-tampering performance. lt can be equipped

    with many kinds of signs, crimp-type terminal box and split terminal box.
