技術參數

◎規格：端鈕盒銅條，小A(8×10.5)、中A(10×12)、大A(11×13)

◎脈沖信號線：2、4、6、8線

◎電流配置：5（30）A帶1-8組輔助端口

                     10（60）A帶1-8組輔助端口

                     20（100）A帶1-8組輔助端口

◎說明：09年版國網單相遠程費控表殼，罩殼帶開蓋記錄柱、有

  編程和輪顯按鍵，帶塑料鉛封。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A(10×12)large A(11×13)

◎Pulse signal lines:2,4,6,8,lines

◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports

                                       10(60)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

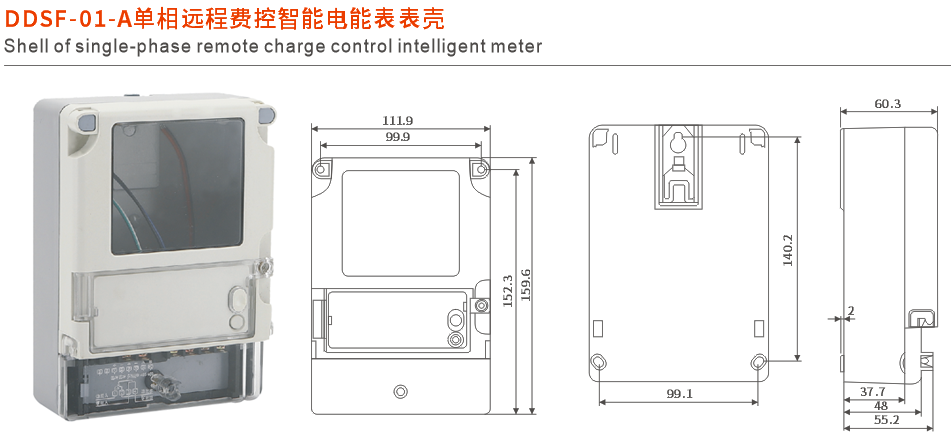

◎Note:2009 version state grid single-phase remote charge control

    meter, the shell has recording column of shell open, there are pro-

    gramming and slideshow buttons, with plastic seal.
