技術參數(shù)

◎規(guī)格：端鈕盒銅條，小A(8×10.5)、中A(10×12)、大A(11×13)

◎脈沖信號線：2、4、6、8線或2、4、6、8銅件

◎電流配置：5（30）A帶1-8組輔助端口

                     10（60）A帶1-8組輔助端口

                     20（100）A帶1-8組輔助端口

◎說明：16年版國網(wǎng)單相本地費控表殼，罩殼帶開蓋記錄柱、有

    輪顯按鍵，電池外置可更換。

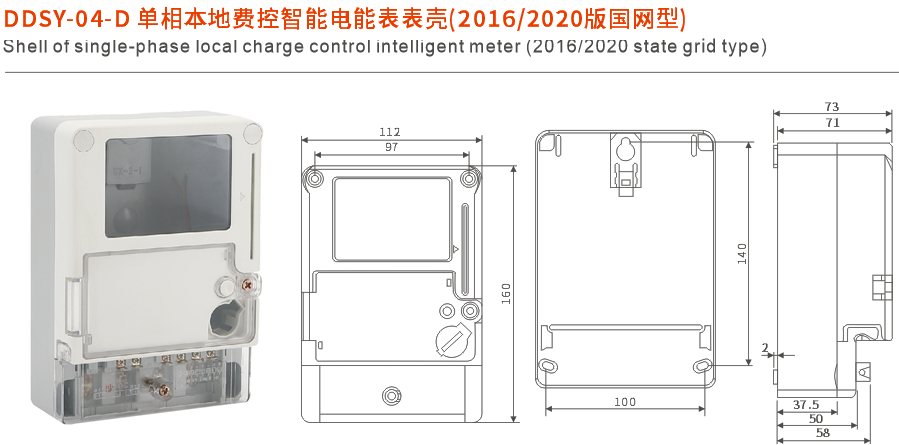

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A(10×12),large A(11×13)

◎Pulse signal lines: 2,4,6,8 lines or 2,4,6,8 copper pieces

◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports

                                       10(60)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note: 2016 version state grid single-phase remote charge control

    meter, the shell has recording column of shell open, there is slideshow

    button, and the external battery can be replaced.
