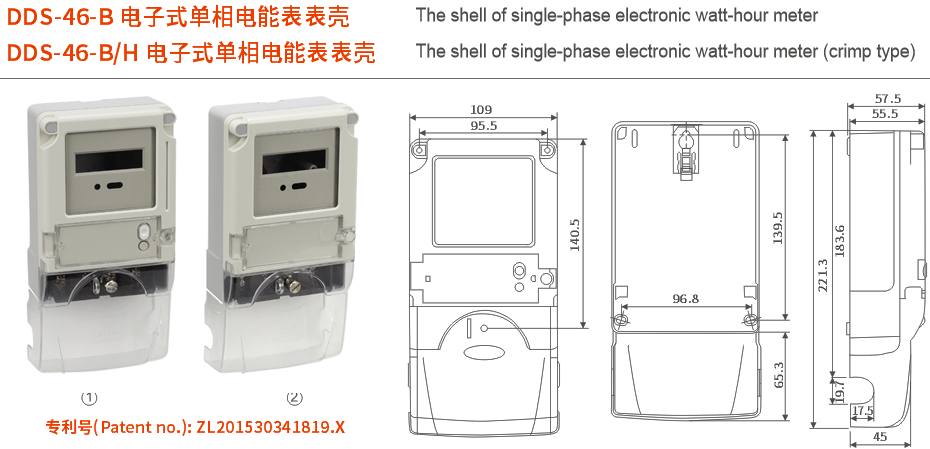

技術參數

◎規格：端鈕盒銅條，小A(7×9、8×10.5)、中A(9×11)、

   大A(10×12)

◎脈沖信號線：2、4、6、8線或2、4插片

◎電流配置：5（30）A帶1-8組輔助端口

                     10（60）A帶1-8組輔助端口

                     20（100）A帶1-8組輔助端口

◎說明：采用塑料鉛封設計，出口型表，端鈕盒外置，可選配多種

   標牌、各種防竊蓋、拆分式端鈕盒，壓接式端鈕盒、膠木端鈕盒。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×9, 8×10.5),

    middle A(9×11),large A(10×12)

◎Pulse signal lines:2,4,6,8 lines or 2,4 plug-in pieces

◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports

                                       10(60)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note: it adopts plastic seal design, export-type meter, external terminal

    box; it can choose a variety of signs, kinds of anti-thett cover, split

    terminal box, crimp-type terminal box and Bakelite terminal box.
