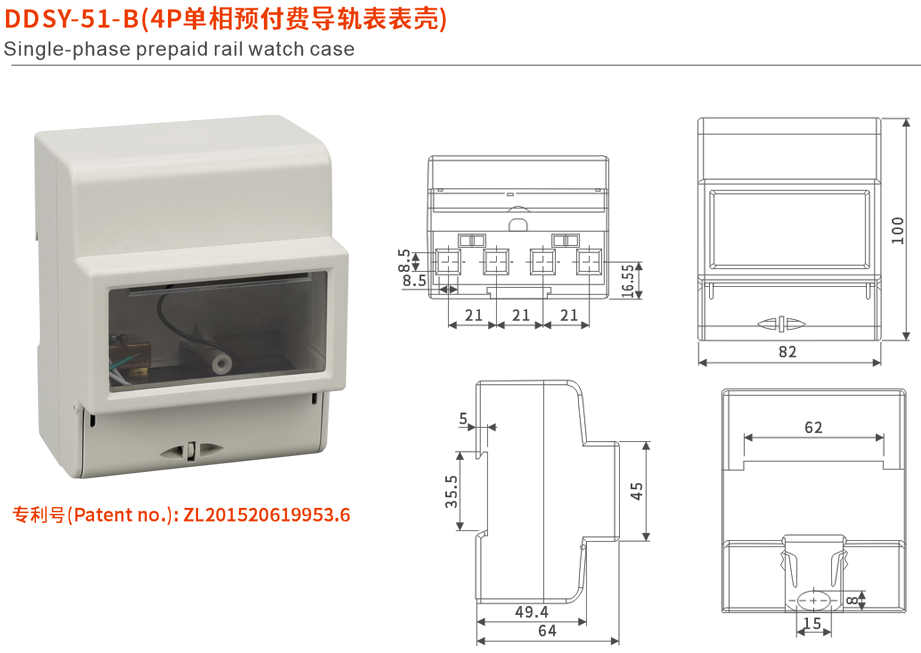

技術參數

◎規格：壓接式端鈕盒，小A(1.5mm銅片)、中A(2.0mm銅片)、

   大A(2.5mm銅片)

◎脈沖信號線：5、6、7、8帶線

◎電流配置：1.5(6)A帶4組輔助端口

                      10(40)A帶4組輔助端口

                      20(80)A帶4組輔助端口

◎說明：原創設計，采用電能表接線方式，方便快捷，成本大幅

    度降低，防塵防潮設計，另可配各種阻值分流器。

TECHNICAL PARAMETERS

◎Specifications: crimp-type terminal box, small A(1.5mm sheet copper)

    middle A (2.0mm sheet copper), large A (2.5mm sheet copper)

◎pulse signal lines: 5,6,7,8 lines

◎Current configuration: 1.5(6) A with 4 sets of auxiliary ports

                                       10(40) A  with 4 sets of auxiliary ports

                                        20(80) A  with 4 sets of auxiliary ports

◎Note: with original design, it uses energy meter wiring method which

    is convenient and cost saving, dust-proof design can be equipped

    with a variety of resistance shunt.
