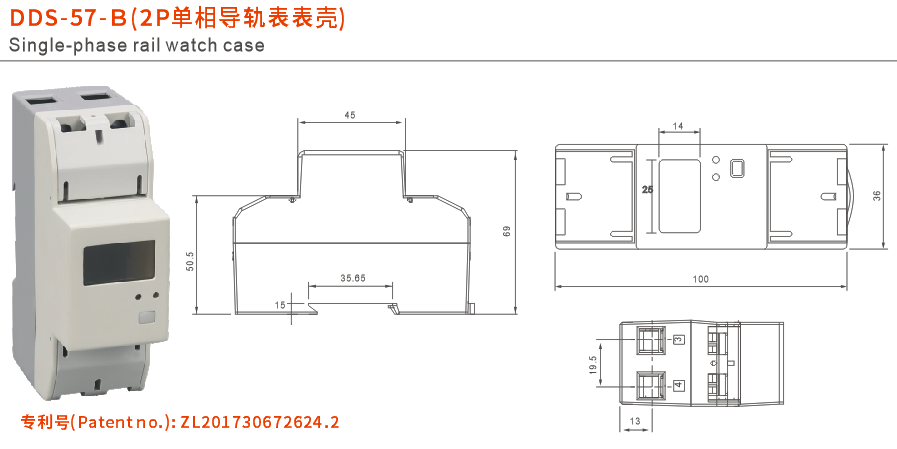

技術參數

◎規格：壓接式端鈕盒，小A(1.5mm銅片)、中A(2.0mm銅片)、

   大A(2.5mm銅片)

◎脈沖信號線：5、6、7、8、9、10、11、12接線端子

◎電流配置：1.5(6)A帶1-8組輔助端口

                     10(40)A帶1-8組輔助端口

                     20(80)A帶1-8組輔助端口

◎說明：原創設計，采用電能表接線方式，方便快捷，成本大幅

    度降低，防塵防潮設計，另可配各種阻值分流器。

TECHNICAL PARAMETERS

◎Specifications: crimp-type terminal box, small A (1.5mm sheet copper),

    middle A (2.0mm sheet copper), large A (2.5mm sheet copper)

◎Pulse signal lines: 5,6,7,8,9,10,11,12 terminals

◎Current configuration: 1.5(6)A with 1-8 sets of auxiliary ports

                                       10(40)A with 1-8 sets of auxiliary ports

                                       20(80)A with 1-8 sets of auxiliary ports

◎Note: with original design, it uses energy meter wiring method which

    is convenient and cost saving, dust-proof design can be equipped

    with a variety of resistance shunt.
